Description

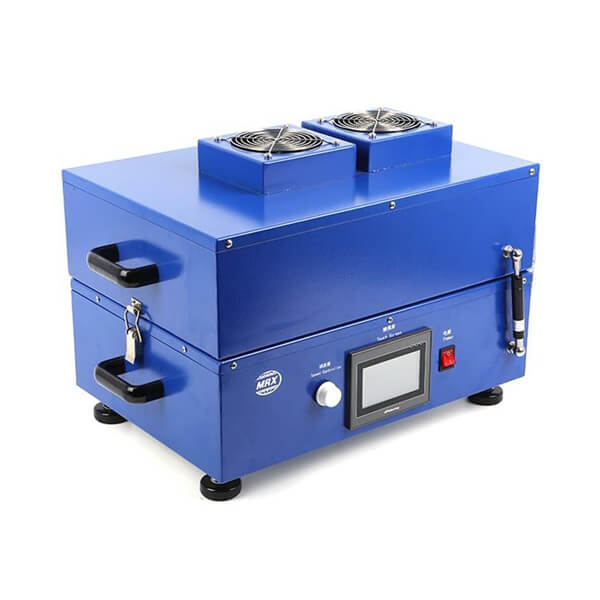

Automatic film coating machine is widely used for research of all kinds of film coating, like ceramic films, crystal films, battery material films, and special nano-films.
Product Features:
- Coating speed is at the range of 0-100 mm, adjustable.
- Vacuum aluminium plate, used to place and take off the substrate in quick.
- Coating stroke can be regulated by travel switch at the range of 0-300 mm.
- Accuracy of adjustable coater is 0.01 mm.
- Small dimension saves space. Compact automatic film coating machine.
Application:
- Battery lab
- Battery research
- Nano coating
- Material research
- Trial-production
- All kinds of film coating research
Specifications:
| Power Supply | 220 V/ 50 Hz |
| Coating speed Accuracy | 0-100 mm/ sec 10 mm/ sec |
| Coating width | Max 100 mm |
| Coating stroke length | Max 250 mm, customized size available |
| Coating thickness | 0.01-3.5 mm Thinnest film can be achieved is > 10 micron |
| Heating System |
|
| Control | Touch Screen Control Display |
| Vacuum Plate | Equipped with vacuum Aluminium plate |
| Dimensions of vacuum plate | L 410 mm x W 200 mm x H 30 mm |
| Vacuum pump | With internal vacuum pump |
| Power | 110 V/ 220 V optional |
| Weight | 50 Kg |
| Dimension | L 800 x W 310 x H 200 mm |
| Included |
|
| Warranty | One Year |
