General

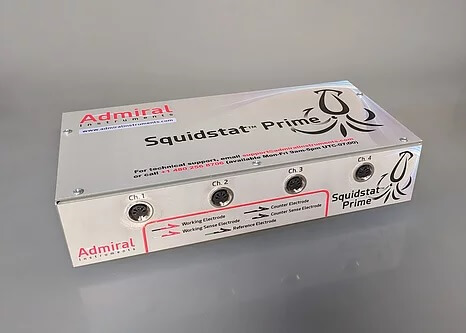

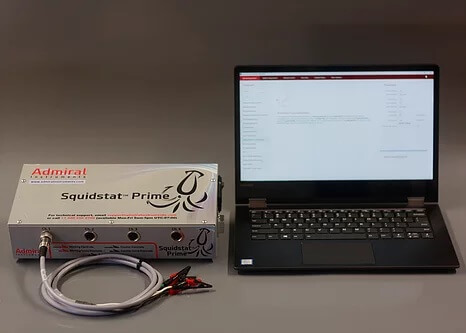

4-Channel Potentiostat Perfect for Multichannel DC Experiments
Squidstat Prime Performance Summary
| Max Current Per Channel | ±100 mA |
| Potential Scan Range | ±10 V |
| Measured Current Resolution | 0.004% of range, down to 400 pA |
| Potential Resolution | 300 µV |
| Temporal Resolution | 1 ms |
| Channels Per Unit | 4, all DC-only |
| Dimensions | 31 x 16 x 8 cm, 1.5 kg |
| Works with RRDE? | Yes, with 1 unit |
Squidstat Prime Highlights:
- Top quality four-channel functionality with a compact design
- Each channel is fully independent, allowing for individual experiments
- Multiple units can be linked to create a large bank of channels
- Onboard memory backs up data from each channel for future recovery
General
| Operating Modes | Potentiostat, Galvanostat, ZRA |
| Cell Connections | 2, 3, 4, of 5 electrode |
| Temporal Resolution | 1 ms |
| Floating vs. Earth-grounded | Earth-grounded via USB-to-computer |
| Input Impedance | 5 GOhm (typical) |
| Input Bias Current | 5 pA (typical) |
| Onboard Memory | 16 GB for automatic data backup |
| Dimensions | 31 cm x 16 cm x 8 cm |
| Weight | 1.5 kg |
| Computer Interface Connection | 1 USB port, PC or Mac compatible |
| Power Requirements | 110-120 VAC or 220-240 VAC, 50-60 Hz |
